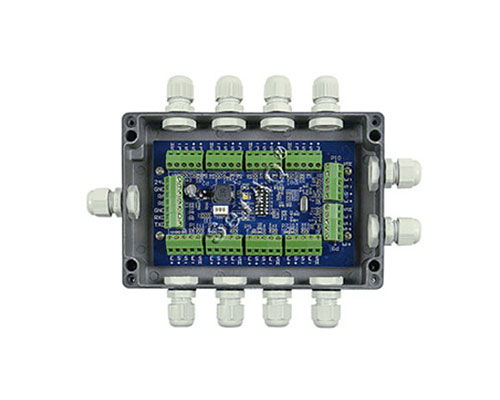

Multi-channel Digital Weighing J-Box(Aluminium enclosure)

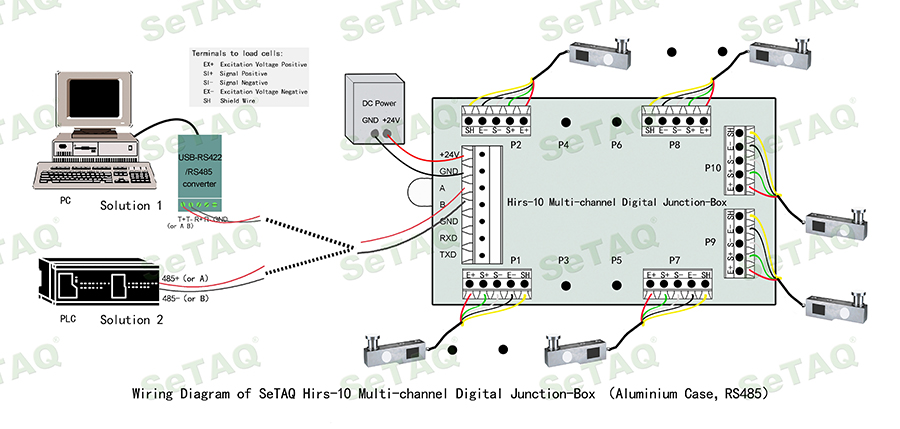

? ? There are N load cell inlets and an N-channel A/D module in each Hirs-N (N-channel) digital weighing Junction-Box, which can process each channel signal and output signals separately, or do the processing at one time and output signals in serial to the bus. In addition, angular difference adjustment can be done in the Junction-Box.
? ? Application: Especially for muti-channel hopper/tank weighing, digital truck scale, industrial process weighing instruments.
? ? Features and Specifications：
?★? Hardware Interface: RS-485
?★? Software Protocol : Freeport/ Modbus RTU protocol (opt.)
?★? OperatingVoltage:? 24V DC;
?★? Operating current:(only HIRS-10)：< 100ma(typical)< 120ma(max)
?★? A/D conversion,digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering;
?★? All the parameters can be set through serial interface;
?★? Module addresses are availablefrom 0 to 31. Modules can work through bus communication;
?★? Baud rate,parity bit and data output format can be set. 1200～115200bps;
?★? Digital filtering: standard filtering or LPF;
?★? Samplingspeed: 3.125～400Hz;
?★? Storage ofthe parameters with protection against power failure;
?★? Operating temperature range: -40℃～+70℃; Storage temperature range: -60℃～+90℃
?< 30ma(typical)< 35ma(max)< 100ma(typical) < 120ma(max)
